Explore Our Pergola Products

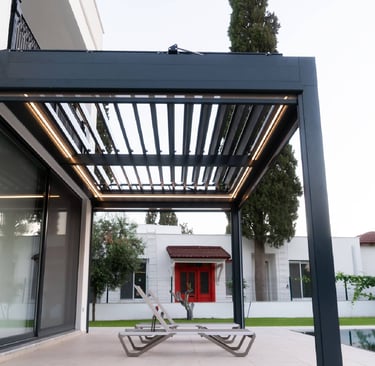

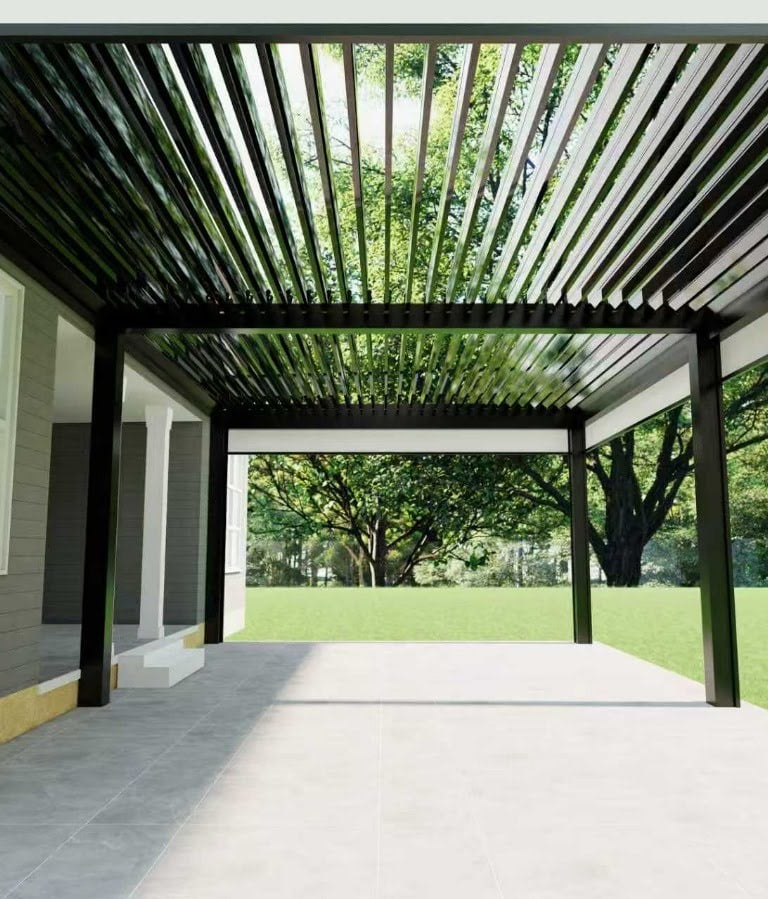

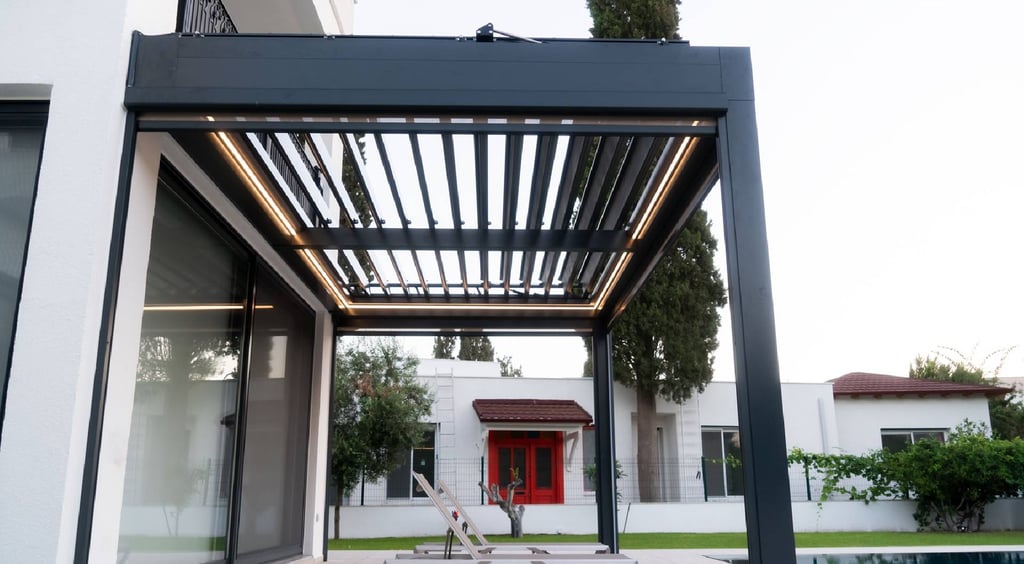

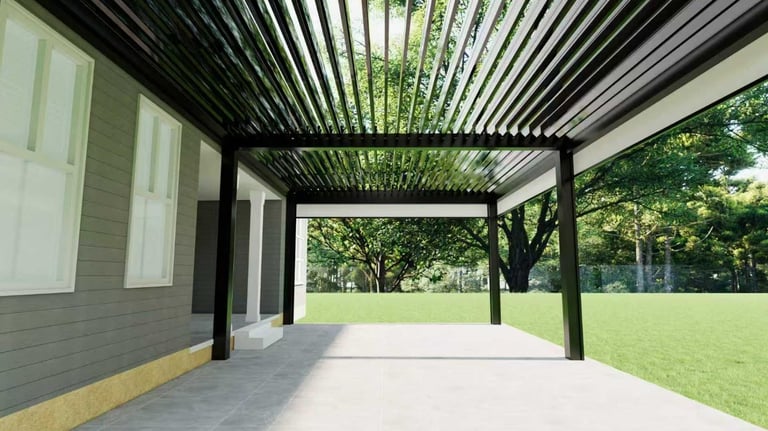

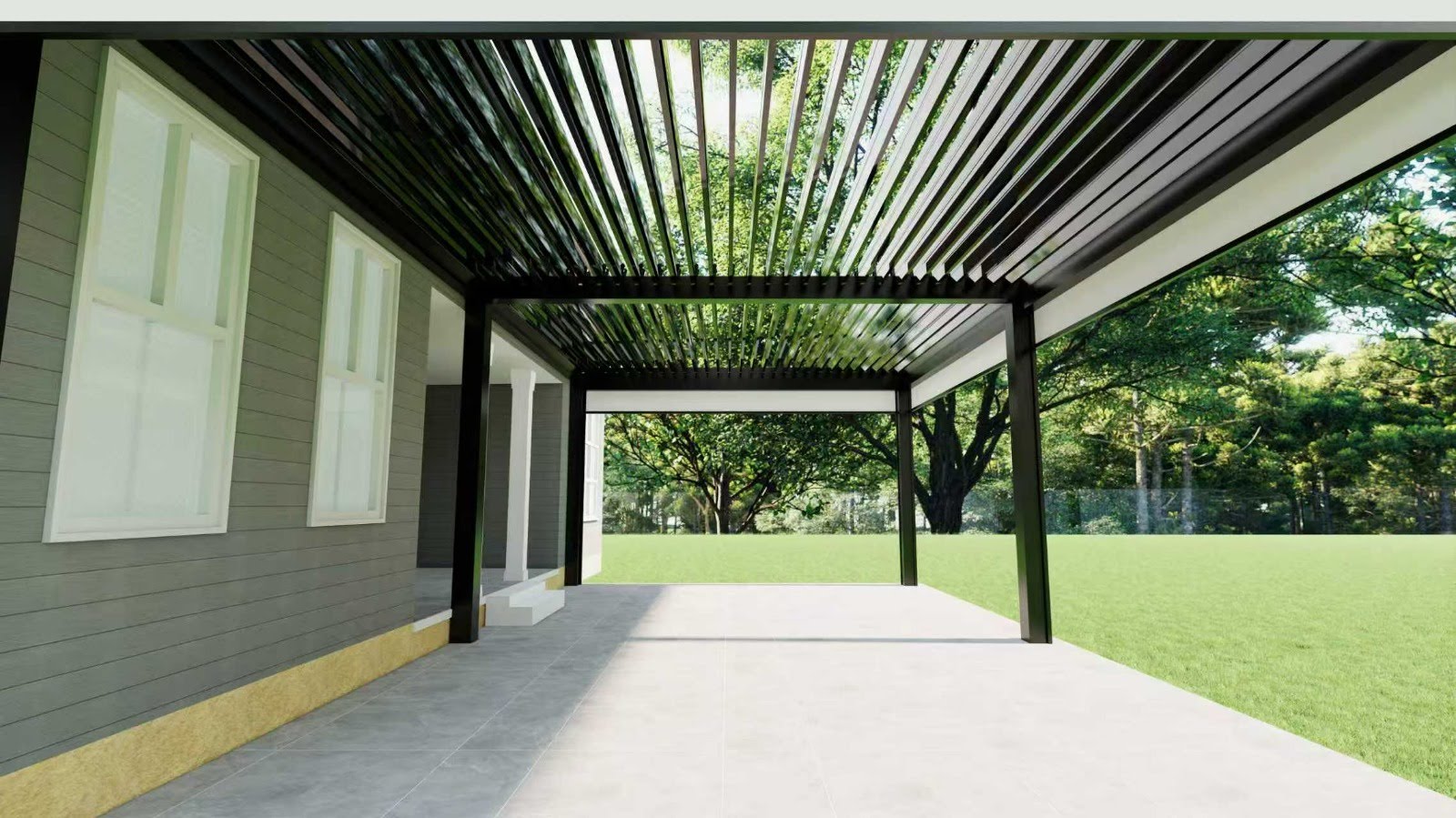

COMFORT SERIES BIOCLIMATIC SYSTEM

This innovative system makes your living spaces comfortable in all seasons thanks to its natural air conditioning and ventilation future.

The axial movement mechanism optimizes airflow and provides temperature control by directing sunlight as needed.

The Comfort Series, which has manual and motorized options, combines both aesthetics and functionality with its modern design and high durability.

Another feature of this system, where water insulation is excellent, is that it provides ventilation even in rainy weather when the panels are at certain angles

Manufactured with Comfort Pergola quality, this bioclimatic system offers superior performance, stylish design, and long-lasting use for both individual and commercial spaces.

COMFORT SERIES BIOCLIMATIC SYSTEM TECHNICAL SPECIFICATION

1) All profile parts used in the system are ALUMINUM.

2) Aluminum profiles used in the system are 6063 – T6 F25 (7580 Briner Hardness).

3) Each system module consists of vertical and horizontal carrier profiles. Vertical main movers measure 160mm*160mm*2.5mm, horizontal main movers measure 60mm*246mm*2.5mm.

The panel profile measures 233mm*456mm*2mm.

4) Since the system has grooves on 4 sides, it is prevented from taking water without any slope. Water is drained from the front or rear leg (strut) profiles

5) With the hidden groove in the system panels, the water discharge is discharged to the side grooves, and from the side grooves to the foot (strut) profiles.

6) During the axial movement of the system panels, the hidden curtain profile in the side grooves moves. This feature is designed to prevent light and wind from outside

7) The panels work axially. This feature is important in terms of being able to do ventilation and shading at the same time.

8) The system has a manual transmission reducer option that provides axial movement and an axial movement option with a tubular motor. Wind/rain/sun sensors can be applied in motorized options.

9) Led lighting can be applied to all edges in the system.

10) Metal accessories are first galvanized and then painted with electrostatic oven paint.

11) The panels can move axially at the desired angle (maximum 105 degrees).

12) All aluminum profiles are painted with electrostatic powder coating technology.

13) The screws used in the system are chrome stainless.

14) All connection flange elements in the system are detailed as hidden.

15) The wicks to be used in the system are EPDM gaskets.

16) The system is guaranteed for 2 years automation, 2 years mechanical parts

Comfort Plus Series

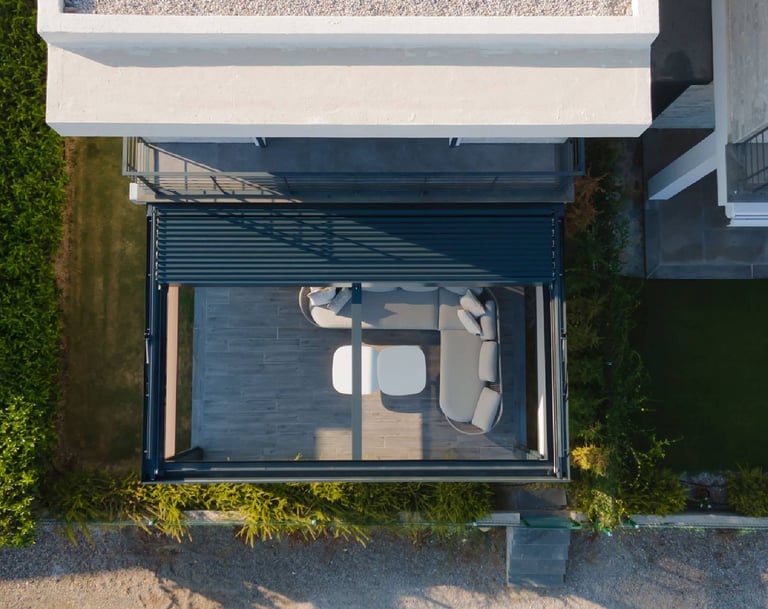

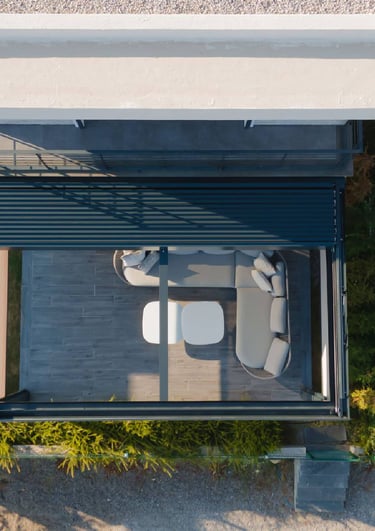

Comfort Plus Series Bioclimatic System

COMFORT PLUS SERIES BIOCLIMATIC SYSTEM

Comfort Plus Bioclimatic Systems, which can be applied in any space, offer folding and gathering movement together, which no other sunroof system in the world offers. Thanks to the aluminum lamellas that can be opened at any angle, it provides the opportunity to benefit from daylight at the desired rate.
Thanks to the folding movement made by the aluminum lamellas, it does not lose its shading feature when ventilating from the roof. Even when the system is open, it provides ventilation without being affected by rain and snow, thanks to specially designed profiles.
Thanks to the folding movement of the aluminum lamellas, the external cleaning of the panels can be clean from the inside without the need to go to the roof. It is colored with electrostatic oven paint; Application is made in any desired color. It is long-lasting thanks to electrostatic oven paint.

COMFORT PLUS SERIES BIOCLIMATIC SYSTEM TECHNICAL SPECIFICATION

1) All profile parts used in the system are ALUMINUM.
2) Aluminum profiles used in the system are 6063 – T6 F25 (7580 Briner Hardness).
3) The most important feature of the system is that the lamellas are corrugated within themselves so that the dust, water, etc. dirt on the upper part does not spill down during the movement of the lamellas.
4) The system can be mounted flat when necessary, inclined when necessary.Since there are grooves on 4 sides, it is prevented from taking water without any slope. Water is drained from the front foot profiles.
5) The panels work axially and have the ability to retract when desired. (This feature is important in terms of ventilation and shading at the same time)
6) Since the aluminum lamellas used in the system cause darkness in the space, lighting is provided by using glass panels from time to time.
7) Metal accessories are first galvanized and then painted with electrostatic oven paint. The lamellas move comfortably and quietly thanks to the 608 ZZ stainless steel bearings.
8) Panels should be able to be opened axially at a minimum angle of 100 degrees. (Important for blocking sunlight from the façade)
9) The opening-closing movement of the roof cover can be used with remote control and optional android or apple control. (Optionally, 4 seasons of comfort is provided with rain, sun, wind sensors.
10) All aluminum profiles are painted with electrostatic powder and water technology.
11) It moves between the engine and the moving mechanism with the T-10 timing belt.
12) The screws used in the system are chrome stainless.
13) Flange application screws should be M8*80 Sleeved Steel dowel and galvanized coating. (To avoid damaging the floor insulation)
14) The wicks to be used in the system are resistant to EPDM heat.
15) Polyurethane filling foam is used in the lamellas for thermal insulation and leakproof adhesive is used for waterproofing.
16) The system to be used is guaranteed for 2 (two) years of motor and 2 years of mechanical warranty.
17) Each system module consists of vertical and horizontal carrier profiles, vertical main carriers should be 128*170*3, horizontal main carriers should be 128*170*3 mm in size.
18) The system modules have static properties to meet 50kg+25kg/m² distributed load and 50kg/m² wind load.
19) Night lighting is provided with hidden LED application on 4 sides of the system, the power can be increased or decreased with the dimmer light receiver.

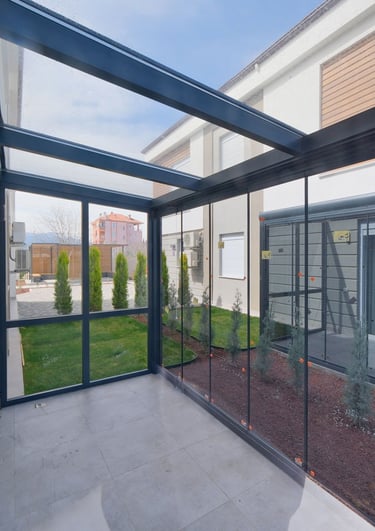

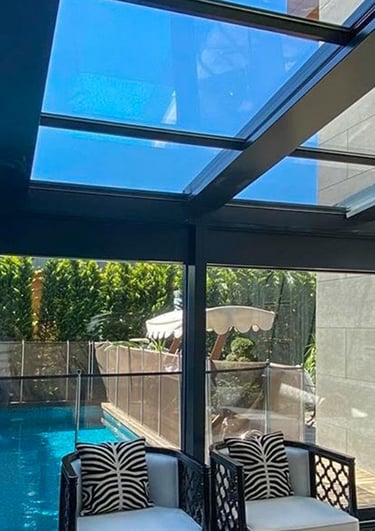

FIXED GLASS CEILING SYSTEM

Fixed glass ceilings are a popular design element in modern architecture, creating an eye-catching aesthetic look. These glass ceilings are an excellent choice for customers who want to provide more natural light into the interiors of structures, creating a spacious feel, and enjoying the natural environment. Fixed glass ceilings offer a wide range of designs and can be used in any building style.

In addition to the aesthetic advantages they provide to customers, glass ceilings also offer practical advantages such as energy savings, low maintenance costs, and durability. Fixed glass ceilings direct sunlight into interior spaces, making interiors feel warmer and brighter. Fixed glass ceiling system Comfort Pergola ceiling curtain systems can be integrated to protect from unwanted sun rays. Glass ceilings are also known for their low maintenance requirements. Fixed glass ceiling systems are produced specifically for customers with self-grooved aluminum profiles specially designed in R&D, which can be use In winter gardens, terraces, and balconies. These ceilings, which are easy to maintain, are durable enough to be used for many years.

FIXED GLASS CEILING TECHNICAL SPECIFICATION

1- The glasses used in the system can be applied as tempered double glazing or tempered laminated double glazing.
2- Thanks to the double glazing we apply in the system, thermal insulation is provided.
3- The maximum size of a single piece of glass to be used in the system is 400×100 cm.
4- Carrier aluminum rails measure 60x120x1.6 mm. A carrier rail is added to the system every 100 cm intervals.
5- If the side façade length is longer than 400 cm, it can be supported by steel profiles and made as a maximum of 800 cm.
6- Optional LED lighting is installed in the system.
7- The forefoot profile in the system measures 90x130x2.5 mm.
8- The front gutter profile used in the system measures 190x147x2 mm. It also has a self-tilting feature.
9- The rear wall connection profile measures 69x191x2 mm. It also has a self-tilting feature.
10- The system is painted with electrostatic powder paint.
11- The system is guaranteed for 2 years.

AUTOMATIC GLASS AND CEILING SYSTEM

Automatic Glass Ceiling System is a ceiling system that opens and closes with a remote control. The fact that the glasses are thermally insulated saves you energy. It protects from cold and heat, and at the same time gives the opportunity to use daylight. You will have the opportunity to watch the sky during the day and the stars at night. It turns indoor spaces into open spaces.

AUTOMATIC GLASS CEILING TECHNICAL SPECIFICATION

1) 4+16+4 and 4+11+4+4 laminated tempered double glazing is applied.
2) Thermal insulation is provided thanks to the double glazing we apply on the glasses.
3) It can be made with 2,3,4, and 5 sections optionally in the opening direction.
4) The side rails do not require steel construction up to 650 cm opening thanks to their 182*117 dimensions and 3 mm wall thickness.
5) Maximum façade and opening can be applied up to 200 400 cm in a single module or 135 800 cm in a single module of façade opening. In this way, the sky image quality is at a high level.
6) 8 stainless steel bearings are used on each wing, which allows the glasses to move evenly on the side rails.
7) Maximum waterproofing is provided thanks to the extra gutter system connected to the side rails.
8) The front leg dimensions in the system are 128*170 x 3 mm. The front gutter dimensions are 170*128 x 3 mm.
9) Thanks to the additive side rails in the system, renovation and renovation can be done easily without disassembling the product in case of glass breakage.
10) The systems can be controlled via remote control, button, and mobile phone.
11) T-10 timing belt is used for the windows to move in a balanced way. It also does not require a lock when in the closed position.
12) The system uses hidden LEDs for optional lighting. The light level can be adjusted thanks to the dimmer.
13) Optionally, the ceiling curtain system developed in R&D can be used under the system.

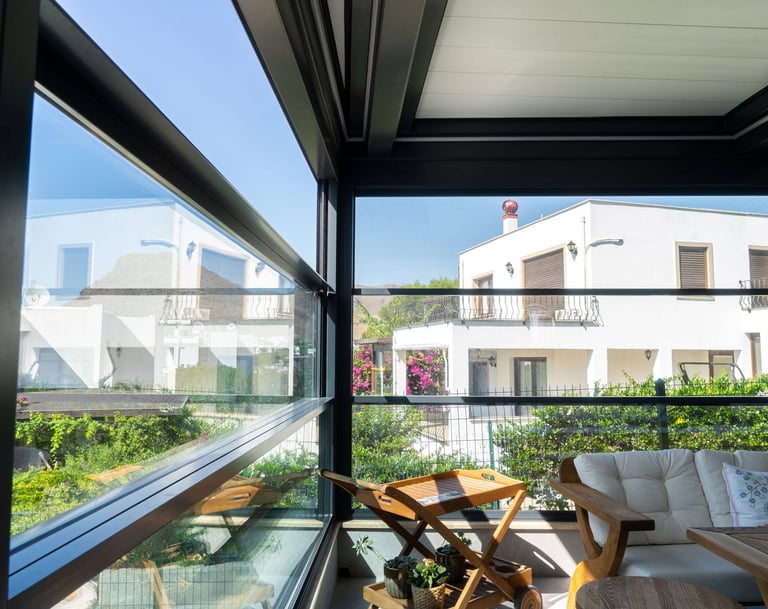

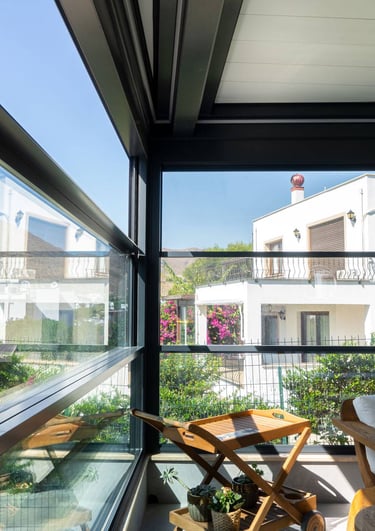

GUILLOTINE GLASS SYSTEM

It is an alternative solution for high-rise buildings, restaurants, cafes, hotels, and home owners.
– Since the lowest window in the system can be opened, all windows can be wiped.
– The lenses move horizontally, up and down.
– The system moves with a motor. Button and remote start can be given. Both are applicable.
– 4+16+4 mm tempered glass is used. (The combination can be changed upon request.)
– It provides insulation thanks to 67 x 1200 bristle wicks in the aluminum case on the sides.
– A 20 mm x 25 mm durable strap with rope inside is used to lift the windows up. It ensures quiet operation. (Optionally, it can be used on the chain instead of the belt.)
– There are 8 bearings on each wing. That allows the windows to move easily and takes the gap in the side channels.
– 20 systems can be controlled with a single control. You can stop the windows wherever you want.
– When the system is open, it acts as a glass railing as 3 glasses stand side by side.
– When the system is turned off, it provides sound, heat, and water insulation.
– It is safe. It also does not require locks.
– You can leave it open as much as you want from top to bottom and let the space air without feeling the discomfort of the wind.
GUILLOTINE SYSTEM is designed in R&D with customer satisfaction, quality, and easy installation in mind. Profile design and registration have been patented by TPE.

GUILLOTINE GLASS SYSTEM TECHNICAL SPECIFICATION

1) The total internal space of the bases is 24 mm. Optional glass thickness can be changed.

2) Aluminum wall thickness is 2 mm.

3) Optional glass number can be applied as 2 or 3 in the system.

4) Thanks to the durable chain used in the system, the glasses move up and down easily and silently. Optionally, 20 mm x 25 mm durable belt with rope inside can be used.

5) We have 8 steel stainless bearings on our side rails for our windows to go up and down in a balanced way.

6) Optional (LCF, BECKER, CUPON or SOMFY MOTOR) is used in our systems.

7) Our maximum dimensions are 5500 mm in width and 2200 mm in height. Dimensions can be changed as a combination upon request.

8) Thanks to our supported profiles, there is no stretching or shaking.

9) 20 systems can be operated at once with a single remote control.

10) It locks itself when closed and cannot be opened from the outside or inside.

11) Thanks to the additional side rails in our system, in case of any renovation or glass breakage, the renovation process can be easily done without damaging the system and without dismantling the product.

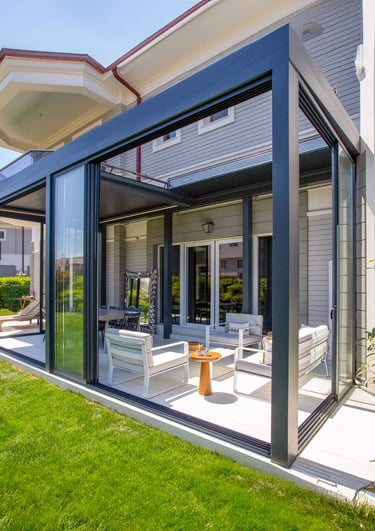

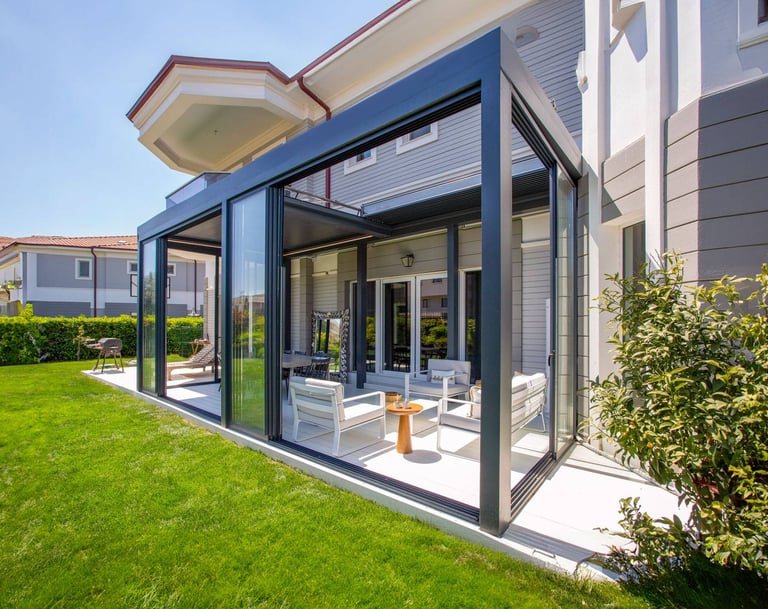

COMFORT SLIDING DOOR SYSTEM

COMFORT SLIDING DOOR TECHNICAL SPECIFICATION

1)Thanks to the support profile, our system height can be made up to 330 cm.
2)Our system uses 4+12+4 double glazing combination double glazing.
3) Our system has 2,3,4,6 and 8 glass options
4) Maximum single module can be applied up to 11 meters wide
5) Our wing widths are minimum 25 cm – maximum 130 cm
6) It provides safe and easy use thanks to the espagnolette lock and handle
7) Air insulation is provided and insulation is increased to the highest level thanks to the hair wicks used in the channels.
8) The bearings used in the rails are steel and the outside is covered with A quality polyamide. In this way, it eliminates damages that may occur due to friction and wear.
9) It has 2 different profiles, with threshold for outdoor areas and without threshold for indoor areas.
10) All plastic parts used in the product are also quality polyamide and are produced in our factory.

You can safely use the supported sliding system in homes, restaurants, cafes, and winter gardens.
Thanks to the support profiles in the system, it provides ultra durability and eliminates stretching.
The double-sided tempered glass used provides protection against impacts and maximizes security.
The glass increases the insulation performance with its various colors and features.
It allows you to live in more comfortable and safer spaces in all four seasons.
The supported sliding system was designed in R&D with customer satisfaction, quality, and easy installation in mind. The profile design and registration are patented by TPE.

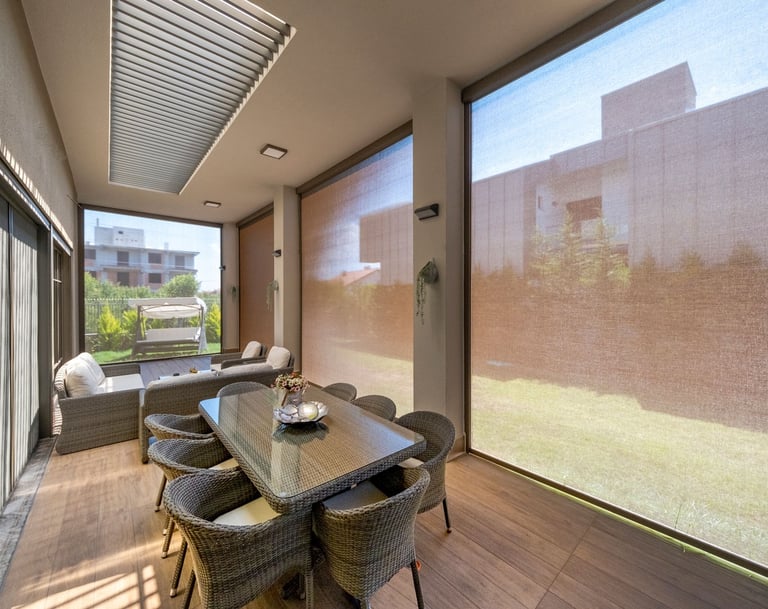

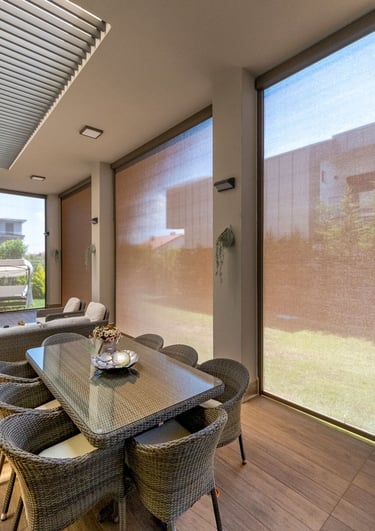

COMFORT SERIES ZIP CURTAIN SYSTEM

1) Screen Fabric is Used.

2) The motor is remote-controlled, and has a CE certificate.

3) The maximum width should be 450 cm, and the minimum should be 100 cm.

4) There are 2 upright rail profiles in the system. They are 49mm*49mm in size and have 6060 Hydr quality.

5) There is 1 horizontal motor box profile in the system. They are 110mm*110mm in size and have 6060 Hydr quality.

6) There is 1 lower eaves profile in the system. They are 50mm*40mm in size and have 6060 Hydr quality.

7) The system makes vertical up/down movement with the motor movement and the weight of the eaves profile.

8) Electrostatic powder paint is applied.

9) 2 Years Mechanical Parts, Automation, and Paint Warranty is Given.

Zip curtains are a product among motorized curtain systems. In the stylish and space-saving system, there is a curtain moving between aluminum rails and a motor and control receiver system on the upper part. These curtain systems are an alternative designed for outdoor use and are equipped with quality fabrics. Zip curtains offer a stylish look in places such as villas, cafes, restaurants, while also being durable and useful. Their resistance to adverse weather conditions is due to the use of quality fabrics. These curtains, which are resistant to unwanted weather conditions such as wind, snow, and rain, also block unwanted sun rays and are offered to users with different colors and fabric models. Zip curtains, which beautify outdoor spaces, provide ease of use and can be controlled effortlessly. Zip curtains are among the alternatives of roller blinds made suitable for outdoor spaces and exceed the expectations of customers thanks to their quality materials.

COMFORT SERIES ZIP CURTAIN SYSTEM TECHNICAL SPECIFICATION
